GSM Antenna Types: A Comparison of 3dBi, 5dBi, 2.5dBi, and 9dBi GSM Antennas

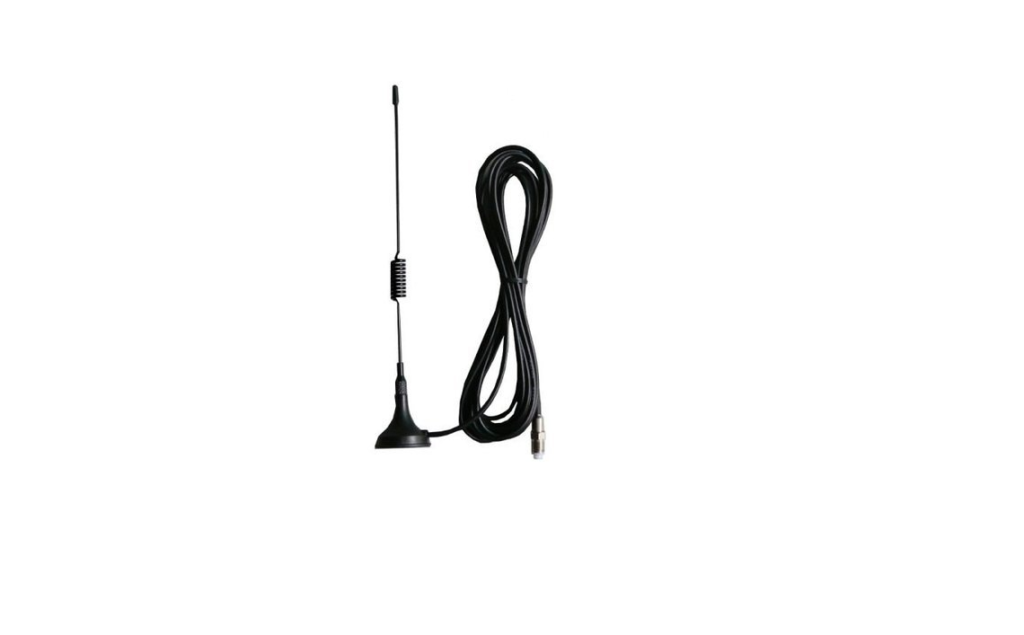

GSM Antenna

GSM Antenna

GSM antennas play a vital role in wireless communication systems, enabling the transmission and reception of signals for GSM (Global System for Mobile Communications) networks. These antennas come in various designs and gain levels, each offering specific advantages and applications. In this article, we will explore different GSM antenna types, including 3dBi, 5dBi, 2.5dBi, and 9dBi GSM antennas, and understand their differences and applications.

What is a GSM Antenna?

A GSM antenna is a type of antenna designed to operate within the frequency bands used by GSM networks, typically around 900 MHz and 1800 MHz. It is used to send and receive signals to and from mobile devices, such as smartphones and modems, facilitating voice and data communication over the GSM network.

Understanding Antenna Gain

Antenna gain is a critical factor that determines the directionality and efficiency of the antenna. It is usually measured in decibels (dBi) and represents the relative increase in signal strength compared to an isotropic radiator (an ideal point source that radiates equally in all directions). Higher gain antennas concentrate the radiated energy in specific directions, providing longer-range communication and better signal quality.

3dBi GSM Antenna

The 3dBi GSM antenna is a commonly used antenna type with a gain of 3 decibels. It offers moderate signal amplification and provides a good balance between coverage and directionality. This type of antenna is suitable for general-purpose applications, where a moderately extended signal range is required without compromising on signal quality.

Applications of 3dBi GSM Antenna:

Urban and suburban areas with moderate signal strength requirements.

Small to medium-sized offices and buildings.

IoT (Internet of Things) devices that require reliable GSM connectivity.

5dBi GSM Antenna

The 5dBi GSM antenna features a higher gain of 5 decibels, offering more directional signal amplification. As a result, it provides an extended range and improved signal quality compared to the 3dBi antenna. However, its directionality might make it more suitable for specific applications.

Applications of 5dBi GSM Antenna:

Rural areas with weaker GSM signals, where an extended range is crucial.

Long-distance communication links between GSM base stations or repeaters.

Remote monitoring and data acquisition systems.

2.5dBi GSM Antenna

The 2.5dBi GSM antenna is characterized by lower gain compared to the 3dBi and 5dBi antennas. This antenna type provides a more balanced radiation pattern and is suitable for applications that require a compromise between signal range and coverage area.

Applications of 2.5dBi GSM Antenna:

Indoor applications with limited space and signal propagation constraints.

M2M (Machine-to-Machine) communication devices, such as vending machines and asset trackers.

Home and small office environments where moderate signal amplification is sufficient.

9dBi GSM Antenna

The 9dBi GSM antenna offers the highest gain among the antennas discussed in this article. With its highly directional characteristics, it provides excellent long-range communication capabilities and is ideal for specific applications requiring focused signal transmission.

Applications of 9dBi GSM Antenna:

Remote and rural areas with very weak GSM signals.

Point-to-point communication links over long distances.

GSM signal boosting and repeater systems.

Conclusion

GSM antennas are essential components in wireless communication systems, enabling seamless voice and data transmission over GSM networks. The choice of the right antenna gain, whether it’s the 3dBi, 5dBi, 2.5dBi, or 9dBi GSM antenna, depends on the specific application requirements, including signal coverage area, signal range, and environmental factors. Understanding these differences will help engineers and designers select the most suitable GSM antenna for their respective projects and ensure optimal performance and connectivity in GSM-enabled devices and systems.
